Additional information
| Panel dimensions | 1880 x 600 mm |
|---|---|
| Spacing between slats | 30 mm |
| Black rear counter-slats | 34 x 45 mm |
| Overall thickness | 69 mm |
| Wood species | Pine |
| Openness percentage | 60 % |

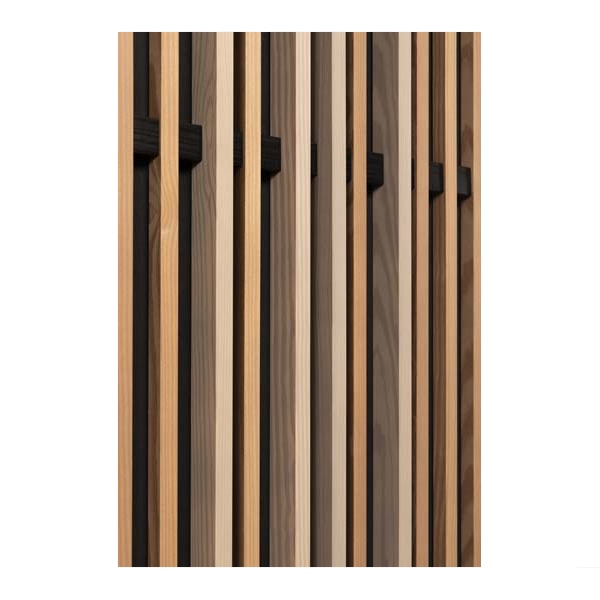

Laudescher LINEA 3D Edge – Touch
WEIGHTED INDEX : αw = 0,80
ABSORPTION CLASS : Class B
Suspended ceiling
Fitting on T24 grid system
or by screwing :
– Selon NF EN 13964
– Selon DTU 58-1
Wall cladding
Mechanical fixing by
screwing:
– Selon DTU 36-2
– Selon NF EN 14915
Reaction to fire possibilities Euroclass B-s1,d0 or B-s2,d0
according to species and finishes.
Rear Surface
Rear surface : acoustic mineral wool tiles 2,4 kg/m2 surfaced with black fleece facing (format 600 x 600 mm ; 20 or 22 mm thickness)
Not supplied by Laudescher
Acoustic Results
The various data relating to acoustic absorption (αp, αw, absorption class) have been calculated according to ISO 11654 standard (LINEA + acoustic supplement).
