Laudescher LINEA 3D Edge – Scale

Category:
Tags: ,

Finishing

  • Natural : D-s2,d0 / B-s1,d0 / B-s2,d0
  • Varnish : D-s2,d0 / B-s1,d0 / B-s2,d0
  • Wax Color : D-s2,d0 / B-s1,d0 / B-s2,d0
  • Wax Color + varnish : D-s2,d0 / B-s1,d0 / B-s2,d0

Modular dimensions: 2495 x 600 mm and 1880 x 600 mm

Ceiling: Fitting on T24 grid system:

  • – As per DTU 58-1
  • – As per EN 13964

Wall: Mechanical fixing by screwing:

  • As per DTU 58-1
  • As per EN 13964

Additional information

Panel dimensions

2495 x 600 mm and 1880 x 600 mm

Cross-section of slats

40 mm (front) x 40 mm (height)

Spacing between slats

35 mm

Spacing of the slats

75 mm

Black rear battens

34 x 45 mm

Overall thickness

67 mm

Wood species

Pine, Oak

Surface mass (pine)

15.3 kg/m²

Surface mass (oak)

19.6 kg/m²

Openness percentage

47%

Rear Surface

Rear surface: acoustic mineral wool tiles 120 kg/m3 surfaced with black fleece facing (format: 600 x 600 mm; 20 mm or 22 mm thickness)
Not supplied by Laudescher

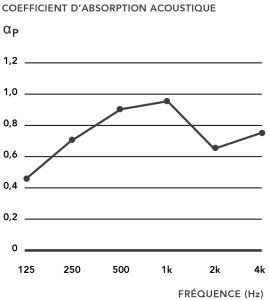

Acoustic Results

Acoustic absorption was measured as per the ISO 354 standard. The various data relating to acoustic absorption (ap, aw, absorption class) have been calculated in compliance with the ISO 11654 standard (LINEA + acoustic supplement).

Ceiling:

Weighted index: aw = 0,75
Absorption class: Class C
As per ASTM C423: NRC = 0,85

Wall:

Weighted index: aw = 0,85
Absorption class: Class B
As per ASTM C423: NRC = 0,9
