Finishing
* Choice of finish: cf. building classification table

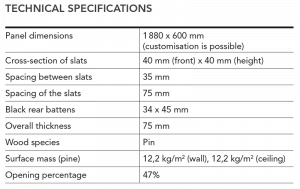

Modular dimensions: 1880 x 600 mm
| Panel dimensions | 1880 x 600 mm (customisation is possible) |
|---|---|
| Cross-section of slats | 40 mm (front) x 40 mm (height) |
| Spacing between slats | 35 mm |
| Spacing of the slats | 75 mm |
| Black rear battens | 34 x 45 mm |
| Overall thickness | 75 mm |
| Wood species | Pine |
| Surface mass (pine) | 12,2 kg/m2 |
| Opening percentage | 47% |
*Test report, panel with insertion of mineral or stone wool tiles with black fleece facing
**Moist and/or corrosive environments, cf. grid system manufacturer recommendations
Edging system:

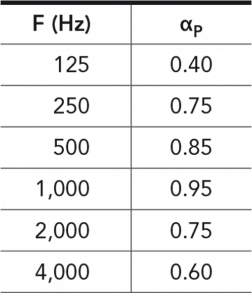

Sound absorption has been measured as defined in standard ISO 354. Data related to sound absorption (ap, aw, absorption class) has been calculated in compliance with standard ISO 11654 (LAUDESCHER LINEA + addition of acoustic materials).
SCALE wall + LR 20 MM ON PLENUM E50 MM
Weighted index: αw = 0.75
Absorption class: Class C
According to ASTM C423: NRC = 0.85
